Audio Tone Generator Plus

icon_atg_plus

"Audio Tone Generator Plus" is a new integrated sound signal generator application that produces a variety of audio test tones.

This app can be used in a wide range of fields as a reference sound source for audio system testing, sound tuning, hearing testing and more.

It has four types of signal generators as follows, and can generate sine wave signal, frequency sweep, chirp signal, colored noise with octave-band noise.

Sine wave generator: It includes sine wave generator that generates a pure tone with a high precision of DVD quality and a frequency accuracy of 0.1Hz, and sets a frequency by 4 presets and keyboard input.
Frequency Sweep generator: It has linear sine wave frequency sweep/warble signal, and adjusts start and stop frequencies by 3 presets and keyboard input. Upward/downward sweep is possible.
Colored Noise generator with Octave-band noise: It produces White noise, Pink noise, Brown noise, Blue noise, Purple noise and Gray noise. It can also generate 1/1 and 1/3 octave band colored noise with user-configurable frequency octave-band filter. Multiple selections of arbitrary bands are possible. Burst noise can also be output with 4 different duty ratios.
Frequency Chirp generator: It is short-time sweep signal with linear or exponential frequency change, and adjusts start and stop frequencies by 3 presets and keyboard input. Chirp signal generation time and start delay time can be adjusted.

The latest version supports iOS 17 and improves stability and performance.


atg_sine_1 atg_sweep_1

atg_noise_white atg_chirp_lc

It will help you to make the benchmark for your audio equipment and loudspeakers, your listening environment and room acoustics or your hearing. The signals created by this app can be best used in conjunction with external devices, such as an audio spectrum analyzer or a sound level meter.


Please to click the link below to visit the product page on AppStoreTM.

It will move to AppStore.

Communications charges when connecting to the AppStore will be borne by the customer.
iPhone is a trademark of Apple Inc., registered in the U.S. and other countries. AppStore is a service mark of Apple Inc.

Products Information

Version: 3.0
Release date: October 10, 2023 UTC
Size: 0.7 MB
Category: Utilities, Music
Compatibility: Compatible with iPhone. Requires iOS 16.6 or later.
Status: Now distributing.

Sound source generation

This app can generate the following signals.

Sine wave
Sweep tone signal
Warble tone signal
Chirp tone signal
Colored White Noise (White noise, Pink noise, Brown noise, Blue noise, Purple noise, Gray noise)
Octave Band Noise (1/1 octave band, 1/3 octave band)

Features

Sine wave generator (Sine): Sine wave signal (Preset frequencies: 200Hz, 1kHz, 2kHz, 8kHz)
Frequency Sweep generator (Sweep): Sine wave frequency sweep/warble signal (Preset frequencies: 20Hz - 20kHz, 200Hz - 2kHz, 2kHz - 8kHz, transition time: 30, 60, 120, 180sec), up-sweep/down-sweep playback
Colored Noise generator with Octave-band Noise (Noise): White noise, Pink noise, Brown noise, Blue noise, Purple noise and Gray noise. Octave band noise generation by 1/1 or 1/3 octave-band filer (center frequency: 63Hz - 8kHz / 50Hz - 10kHz), burst playback with duty ratio of 10/25/50/75%.
Chirp signal generator (Chirp): Short-time sweep signal (transition time: 0.1 - 1.0sec, start delay time: 1 - 10sec, frequency variation curve: Linear/Exponential)
Configurable frequency range: 20Hz - 21kHz
Frequency input by keyboard in units of 0.1Hz.
Preset frequency customization function.
Playback time control: 30sec/60sec/2min/3min/15min/60min
Output gain control.
Output channel selection: LR/L/R
Output phase control: 0/180 degree - In-phase/Out-of-phase.
Optimized for iPhone, Compact code size.

Applications

This app can be very useful for a variety of applications including:

Testing for Loudspeakers and Headphones
Testing and tuning for Audio amplifiers, Equalizers and many other Audio equipment.
Burn-in for Audio equipment, Loudspeakers and Headphones
Acoustics testing
Frequency response measurement
Sound insulation level measurement
Indoor sound field distribution measurement
Reverberation time measurement
Sound masking
Relaxation and meditation
Hearing Test

Top view

Top view has the operation setting area at the top, and the control area at the bottom.

In the control area, you can select one operating mode from Sine wave (Sine), Sweep signals (Sweep), Chirp signals (Chirp) and Noise signals (Noise) and Information view (Info). In addition, you can control the playback volume (Volume), Output channel (LR/L/R), Preset settings (Preset) and Playback control.

In the operation setting area, you can set the parameter of the operating mode that has been selected in the control area.

At the initial startup of this app, product information (Info) will be displayed, so please confirm how to use it.


Operational modes

- Sine: Sine wave signal generator

- Sweep: Sweep signal generator

- Noise: Noise signal generator

- Chirp: Chirp signal generator

- Info: Information view


atg_sine_top atg_sweep_top

atg_noise_top atg_chirp_top

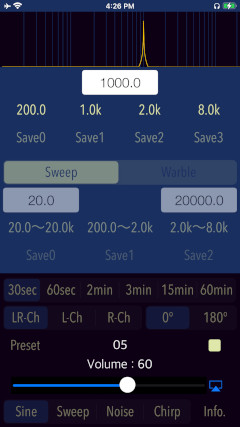

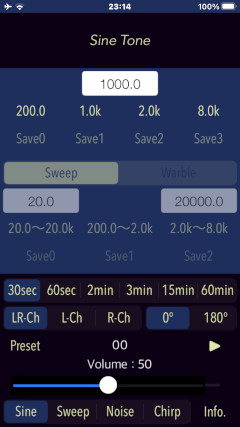

SINE

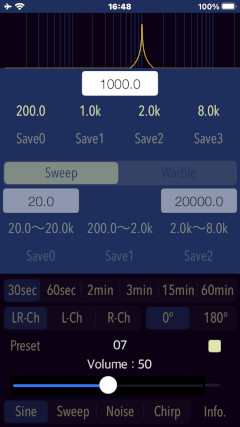

This mode generates a pure tone signal with a sine wave.

By tapping the frequency button, you can set from 4 different frequencies with a single touch. Tap the Play button to generate a tone signal, and the Stop button to stop playback.


atg_sine_2

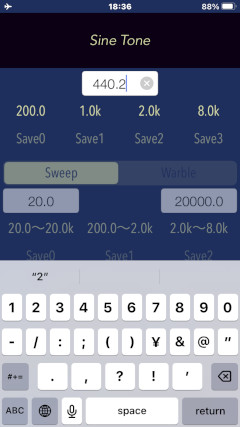

The sine wave frequency can be set in the range of 20 Hz to 21 kHz. Tap Frequency Monitor, keyboard-input the frequency you wish to set, and tap the Return key to confirm the value.


atg_sine_key

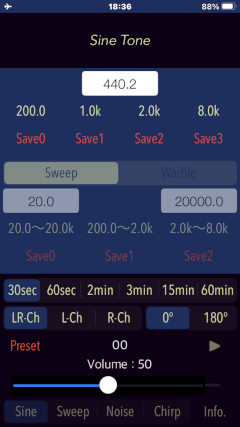

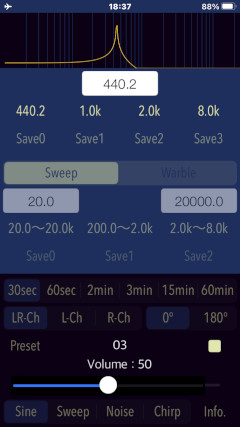

Preset frequencies can be set as desired. Tap the Preset button and save the preset frequency with the Save buttons (Save0 - Save3).


atg_sine_prsv atg_sine_3

SWEEP

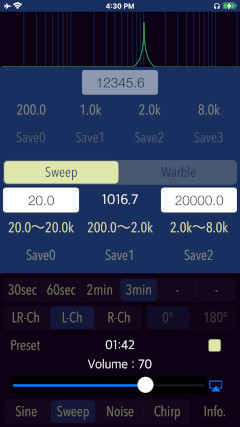

This mode generates a frequency sweep signal or warble signal using the sine wave.

The sweep signal produces a sine wave such that the frequency of the sine wave transitions continuously with time in a certain frequency range.


atg_sweep_4

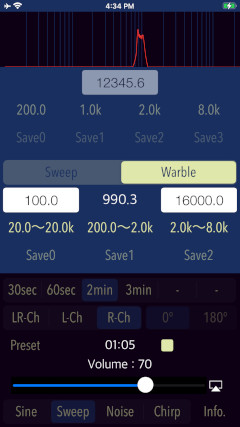

A warble signal is a tone signal that modulates the frequency of a sine wave around a certain frequency f0. This app generates a 1/3 octave band FM modulated signal in which the center frequency transitions continuously with time. Using a warble signal as the measurement signal can disperse the effects of echoes and standing waves generated at the measurement point.


atg_warble_1

By tapping the frequency button, you can set from 3 different frequencies with a single touch. Tap the Play button to generate a tone signal, and the Stop button to stop playback.

Tapping the play button generates a sweep/warble signal. Up sweep and down sweep are available.

The frequency can be set in the range of 20 Hz to 21 kHz. Tap Frequency Monitor, keyboard-input the frequency you wish to set, and tap the Return key to confirm the value. The lower and upper frequency limits must always be set.


atg_sweep_key

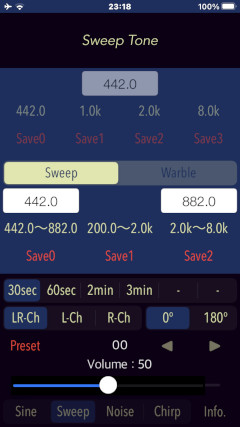

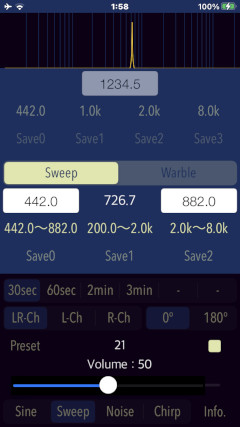

Preset frequencies can be set as desired. Tap the Preset button and save the preset frequency with the Save buttons (Save0 - Save2).


atg_sweep_prsv atg_sweep_3

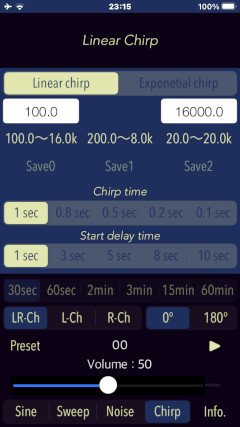

CHIRP

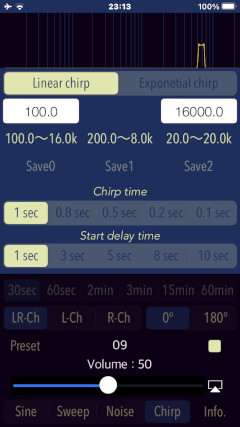

Chirp signal is a sweep signal of very short duration. This app generates a short time sweep signal with a sine wave that increases in frequency with time.

By tapping the frequency button, you can set from 3 different frequencies with a single touch. Tap the Play button to generate a tone signal, and the Stop button to stop playback.

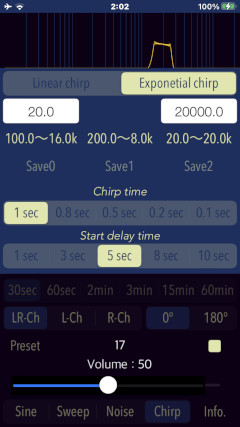

The frequency change curve of the chirp signal can be selected from Linear or Exponential.

The Chirp time is the signal transition time and can be set in the range of 0.1 to 1 second.

Furthermore, since the generation time of the chirp signal is very short, the Start delay time is provided from the time the start button is tapped until the signal is output. The Start delay time can be set within a time range from 1 to 10 seconds.


atg_chirp_lc_2 atg_chirp_exp

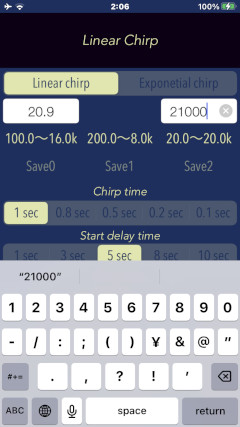

The frequency can be set in the range of 20 Hz to 21 kHz. Tap Frequency Monitor, keyboard-input the frequency you wish to set, and tap the Return key to confirm the value. The lower and upper frequency limits must always be set.


atg_chirp_key

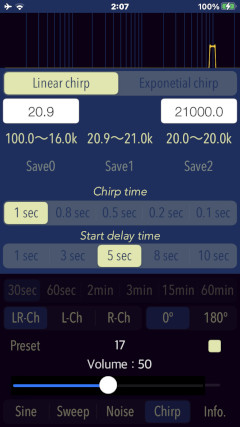

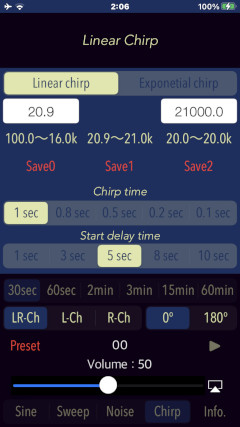

Preset frequencies can be set as desired. Tap the Preset button and save the preset frequency with the Save buttons (Save0 - Save2).


atg_chirp_prsv atg_chirp_3

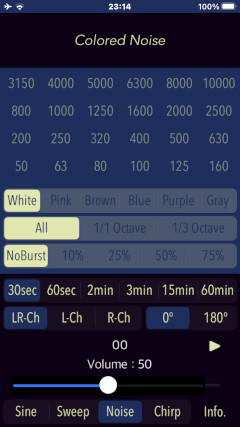

NOISE

As the colored noise, it produces White noise, Pink noise, Brown noise, Blue noise, Purple noise and Gray noise.

Select a noise type and tap the Play button to generate a noise signal.

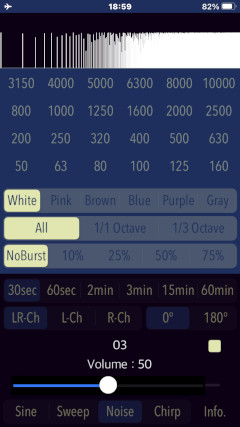

White noise

White noise is a constant noise signal whose component strength in a unit frequency band (1 Hz) is independent of frequency. When viewed in terms of sound power over a frequency band of constant width, it increases with frequency by +3 dB/oct for higher frequencies.

atg_white

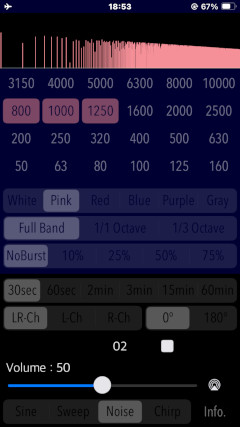

Pink noise

Pink noise is a noise signal that is passed through a -3dB/oct low-pass filter relative to white noise. It falls to the right on the frequency response table as the frequency increases. It is a noise suitable for the purpose of evaluating the sound volume in each frequency band because the energy in each frequency band is uniform. In other words, pink noise is often used in acoustic adjustment and measurement because it has the same loudness in any octave band.

atg_pink

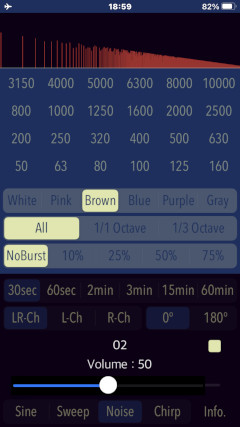

Brown noise

Brown noise is a noise signal whose power spectral density descends 6 dB per octave with increasing frequency. It sounds more like an emphasis on lower frequencies or a softer sound quality compared to white or pink noise. In audio applications, it is used for subwoofer phase check and aging of low midrange speaker units. In healthcare applications, it is also used for sound masking in the treatment of sleep disorders, environmental noise and tinnitus.

atg_brown

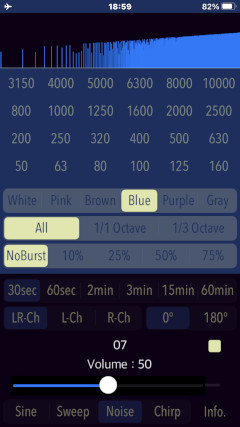

Blue noise

Blue noise is a noise signal whose power spectral density increases by 3 dB per octave with increasing frequency. Because blue noise is biased toward higher frequency components, it sounds like a high-pitched hissing noise.

atg_blue

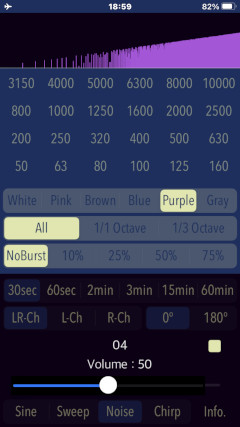

Purple noise

Purple noise is a noise signal whose power spectral density increases 6 dB per octave with increasing frequency. Purple noise is biased toward even higher frequency components than blue noise, so it sounds like a high-pitched hissing noise with no bass at all.

atg_purple

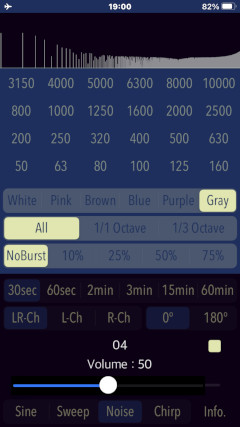

Gray noise

Gray noise is a noise signal that exhibits a power spectrum similar to the psychoacoustic equal loudness curve. All frequency components sound the same loudness when listened to by humans.

atg_gray

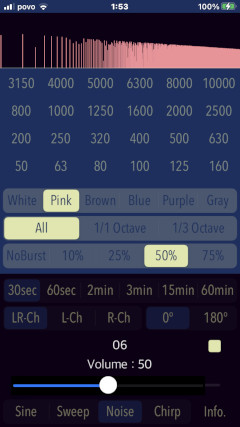

These signals can be output as burst signals (1 cycle, approx. 5 seconds). Burst signal can be selected from four different duty ratios (10, 25, 50, and 75%). When NoBurst is selected, continuous playback is performed.


# Burst signal cycle time: 5.12 sec (sampling frequency 48 kHz), 5.57 sec (sampling frequency 44.1 kHz)


atg_pink_burst

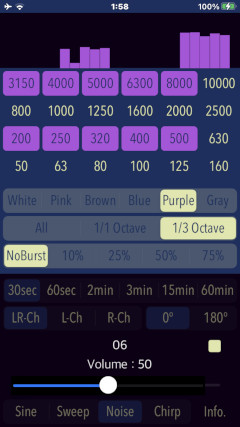

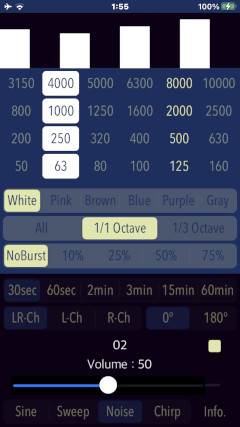

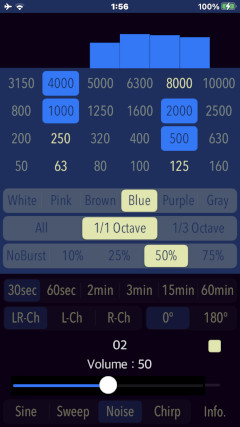

Octave Band Noise

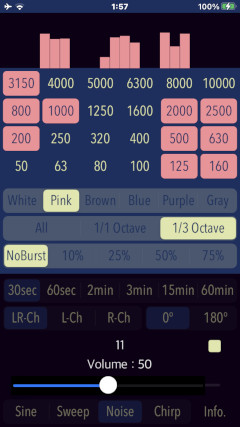

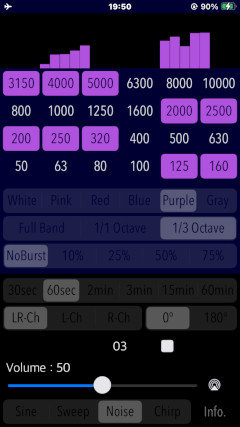

In NOISE mode, Colored noise signals can be output as octave band noise. Octave band noise is a noise signal in which a frequency band is extracted in 1/N octaves (N is a natural number). It can also be used to measure and evaluate the volume of specific frequency band with respect to the octave band.

This app can output noise signals through a 1/1-octave or 1/3-octave octave bandpass filter using arbitrary noise as the source signal.

Tap either the "1/1 Octave" or "1/3 Octave" button to select the center frequency of the bandpass filter. Multiple arbitrary frequency bands can be selected. The bandpass filter center frequencies that can be selected are as follows:

Center frequency of 1/1 octave band bandpass filter : 63, 125, 250, 500,1000, 2000, 4000, 8000 Hz
Center frequency of 1/3 octave band bandpass filter : 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500,630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000 Hz

atg_11oct_white atg_11oct_white

atg_13oct_pink atg_13oct_purple

Note: If no octave band frequencies are selected, the signal output will be silent.

Information view

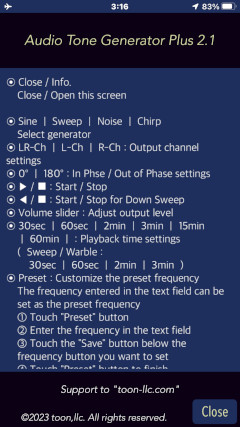

By tapping "Info" button, it is displayed this information view of product information and usage. If you return the operation, please tap the other Mode button.

At the first boot, this view is displayed, so please check how to use it.


atg_info

Release Note

Version 3.0 was released on October 10, 2023 UTC.
Version 2.1 was released on January 19, 2023 UTC.
Version 2.0 was released on November 11, 2022 UTC.
Version 1.0 was released on April 22, 2022 UTC.

Note

Please be careful that continuous high-volume and high-frequency signals can damage speakers, even if your ears don't perceive them as being too loud.
If the silent mode is turned on, all iPhone sound outputs are disabled. To enable the sound output, please be sure to turn off the silent mode in the iPhone's settings, "Settings/Sounds" or Control Center.
AirPlay data transmission is a wireless communication system using Apple's proprietary audio data compression. For this, there are cases where the random sound noise is generated by radio condition and the compatibility of AirPlay connection equipments. Note that it may occur at particularly high frequency band.
The chirp signal is a sweep signal of extremely short duration, so it does not guarantee a playback frequency in the specified range.
When using this application with wireless communication such as Bluetooth or AirPlay, there may be cases that limitation of the playback frequency, lowering the output level and irregular noise, etc., may occur under the influence of wireless environment, communication equipment and communication state. Please note that this is not to guarantee that this application operates as configured specifications under the wireless communication.
