Audio Tone Generator Lite - Free of charge!

icon_atglite

"Audio Tone Generator Lite" is a free sound generator app. It creates the audio reference signals as Sinewave, Sinwave Sweep, White Noise and Pink Noise.

"Audio Tone Generator Lite" will help you to make the sound benchmark for your audio equipment and loudspeakers, your listening environment and room acoustics or your hearing.

The signals created by this app can be best used in conjunction with external devices, such as an audio spectrum analyzer or a sound level meter.


atglite_sine_init atglite_sine
atglite_sweep atglite_pink

In addition, by having you to use it in conjunction with our Real-time Audio Analyzer app, "Audio Frequency Analyzer", it can be easily measured the frequency response of your Audio system. Please use the "Audio Tone Generator Lite" app as the standard pink noise signal generator.


Products Information

Version : 6.1
Release date : Janaury 20, 2023 UTC
Size : 2.8 MB
Category : Utilities, Music
Recommendation : Requires iOS 15.0 or later.
Status : Unsubscribe

Sound source generation

"Audio Tone Generator Lite" app can generate the following signals.

Sinewave
Sweeped Sinewave
White Noise
Pink Noise (1/f noise)

Features

Optimized for iPhone, Compact code size.
Sinewave generation - Preset frequencies : 500Hz, 1000Hz, 4000Hz, 16000Hz
Frequency Sweep of Sinewave generation - Preset frequencies : 200Hz-4000Hz, 20Hz-20000Hz
Supports of Sinewave frequencies range between 20Hz to 20000Hz
Direct Frequency input on keyboard
White noise generation
Pink noise generation
Output Gain Control
CD Quality Output

Applications

"Audio Tone Generator Lite" can be very useful for a variety of applications including:

Testing Speakers and Headphones.
Testing and tuning Audio amplifiers, Equalizers and many other Audio equipments.
Acoustics testing.
Frequecy response testing for Audio systems using White and Pink noise generation.

Top View

In the top view, you can select an operating mode from Sinewave mode (Sine), Sinewave sweep mode (Sweep) and noise mode (Noise) and Info view. In addition, you will control to play and stop and output volume.

Upon the initial launch of the application, usage information in Info view is displayed. Usage notes and explanation of functions are displayed. Please check this and use this application. Tap Close button to return to the top view.


atglite_sine_init atglite_info

Sinewave Mode

This is the Sinewave signal generation mode. It generates a single tone signal from 20Hz to 20kHz.

If you tap the frequency display monitor, it is possible to use the keyboard. In the keyboard input, you should set a frequency of 20kHz from 20Hz.

Further, by tapping a preset frequency button can be set from four preset types. By tapping "PLAY" button, it generates a tone signal. It stops the signal generation by tapping "STOP" button.


atglite_sine atglite_sine_play
atglite_sine_input

Sweep Mode

This is the Sinewave Sweep signal generation mode.

It can generate a sine wave of transitional frequency continuously in the frequency range from 20Hz to 20kHz.

If you tap the frequency monitor display, it is possible to use the keyboard. In the keyboard input, you should set both the upper and lower limit frequency. It need to set the integer value of both frequency.

In addition, by tapping a preset button, you can set from two types. There is two types of "PLAY" button that can be generated rising sweep and downward sweep. It generates a tone signal sweep by tapping "PLAY" button, and then sweep the full frequency range at 60 seconds. It stops the signal generation by tapping "STOP" button.


sweep_init sweep_play
sweep_play sweep_input

Noise Mode

This is Pink noise or White noise generation mode. At first select whether "WHITE" or "PINK" and tap "PLAY" button, the noise generation will start. It stops the signal generation by tapping "STOP" button.


White noise

The amplitude of white noise is constant throughout the audible frequency range. Twice the power corresponds to 3 decibel increase, so white noise is said to increase 3 dB per octave in power.


noise_white noise_white_play

Pink noise

Pink noise is filtered to give equal power per octave or equal power per 1/3 octave. The power of pink noise per Hz of bandwidth decreases by 3 decibels per octave. When pink noise is chosen for equalizing auditoriums, the real-time analyzer can be set up so that they display a straight horizontal line when they receive pink noise.


noise_pink noise_pink_play

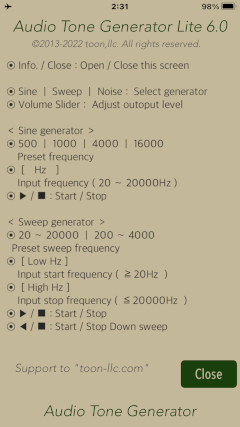

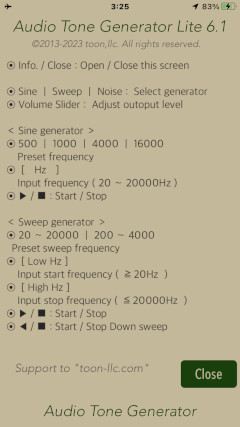

Information view

By tapping "Info" button, it is displayed this information view of product information and usage.

At the first boot, this view is displayed, so please check how to use it.


atglite_info

Release Note

"Audio Tone Generator Lite" version 6.1 was released on January 20, 2023.

* Minor improvements and increased stability.

"Audio Tone Generator Lite" version 6.0 was released on November 5, 2022.

* Requires iOS15.0 or later. Renewed UI design. Improved internal processing and performance.

"Audio Tone Generator Lite" version 5.1 was released on March 17, 2022.

* Improved stability.

"Audio Tone Generator Lite" version 5.0 was released on February 18, 2022.

* Requires iOS14.7 or later. Redesign of UI. Improved stability.

"Audio Tone Generator Lite" version 4.4 was released on March 18, 2021.

* Requires iOS12.5 or later. Improved stability. Display of ATT dialog for iOS14.

"Audio Tone Generator Lite" version 4.3 was released on August 26, 2020.

* Improved stability.

"Audio Tone Generator Lite" version 4.2 was released on March 3, 2020.

* Requires iOS12.4 or later. Improved stability.

"Audio Tone Generator Lite" version 4.1 was released on July 20, 2019.

* Requires iOS12.2 or later. Performance improvement.

"Audio Tone Generator Lite" version 4.0 was released on October 11, 2018.

* Requireso iOS12.0 or later. Redesign of UI. Performance improvement.

"Audio Tone Generator Lite" version 3.3 was released on May 18, 2018.

* Requires iOS11.3 or later. Improved stability.

"Audio Tone Generator Lite" version 3.2 was released on March 12, 2018.

* Requires iOS11.2 or later. Redesign of UI. Performance improvement.

"Audio Tone Generator Lite" version 3.1 was released on May 19, 2017.

* Redesign of UI. Performance improvement.

"Audio Tone Generator Lite" version 3.0.2 was released on December 4, 2016.

* Code optimization.

"Audio Tone Generator Lite" version 3.0 was released on November 22, 2016.

* Requires iOS10.1 or later. Redesign of UI. Performance improvement.

"Audio Tone Generator Lite" version 2.4 was released on May 27, 2016.

* Performance improvement.

"Audio Tone Generator Lite" version 2.3 was released on March 9, 2016.

* Correspond to iOS9 or later.

"Audio Tone Generator Lite" version 2.2 was released on January 5, 2016.

* Performance improvement.

"Audio Tone Generator Lite" version 2.1 was released on October 5, 2015.

* Redesign of UI. Performance improvement.

"Audio Tone Generator Lite" version 2.0 was released on November 1, 2014.

* Supports for iOS8. Redesign of UI. App name changed. Performance improvement.

"Audio Tone Generator Free" version 1.4 was released on April 8, 2014.

* App name changed. Performance improvement.

"AudioToneG" version 1.3 was released on February 5, 2014.

* Performance improvement.

"AudioToneG" version 1.2 was released on October 22, 2013.

* Supports for iOS7. Redesign of UI. Performance improvement.

"AudioToneG" version 1.1.0 was improved on June 13, 2013.

* Performance improvement.

"AudioToneG" version 1.0.0 was released on April 16, 2013.

Note

Please be careful that continuous high-volume and high-frequency signals can damage speakers, even if your ears don't perceive them as being too loud.
If the silent mode is turned on, all iPhone sound outputs are disabled. To enable the sound output, please be sure to turn off the silent mode in the iPhone' settings, "Settings/Sounds" or Control Center.
On the keyboard-input of frequency, please press the return key after entering a numeric value. Also, in the sinewave sweep mode, please press the return key after entering two numeric values continuously.
Wireless connection with Bluetooth equipment is not supported.
AirPlay data transmission is a wireless communication system using Apple's proprietary audio data compression. For this, there are cases where the random sound noise is generated by radio condition and the compatibility of AirPlay connection equipments. Note that it may occur at particularly high frequency band.
When using this application with wireless communication such as Bluetooth or AirPlay, there may be cases that limitation of the playback frequency, lowering the output level and irregular noise, etc., may occur under the influence of wireless environment, communication equipment and communication state. Please note that this is not to guarantee that this application operates as configured specifications under the wireless communication.
